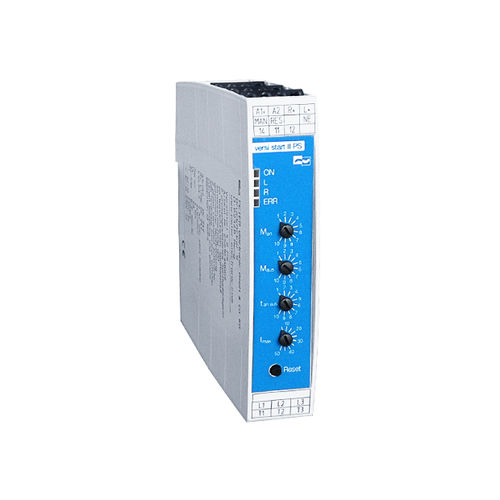

Motor soft starter VersiStart II 9 PS

two-phasecompacteconomical

Features •two-phase controlled soft starter with reversing function •controlled by microcontroller •currentless reversing with relay, soft start with thyristors •overload protection •4 potentiometers to adjust starting torque, •stopping torque, acceleration /deceleration time and overcurrent limit •electrically isolated 24V inputs for clockwise / anti clockwise rotation •reset via device panel or external reset switch •4 LEDs as status indicators •current and torque reduction during start-up •integrated bypass relay •integrated mains contactor •ultra-slim compact design, width: 22,5mm •degree of protection IP20 Functions •soft start and soft stop •reversing function •current monitoring •blocking protection •potential-free relay outputs for operational status •signalling output programmable •acc. to customer requirements Option: (upon request) •special acceleration/deceleration time 0 … 1s •motor protection variant Preferred application areas •electric pumps •ventilators and fans •extraction systems •conveyors •others
