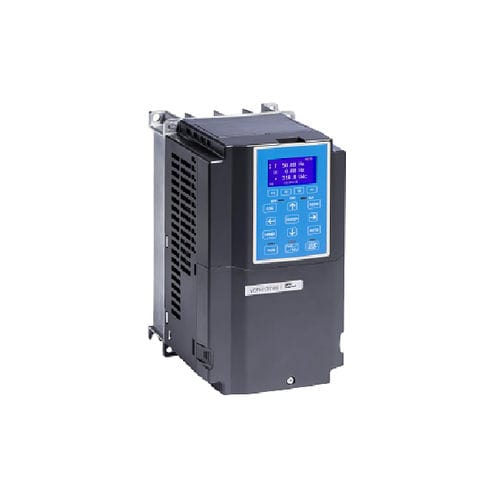

Three-phase AC drive VersiDrive i 43C2-E

for asynchronous motorsfor synchronous motorwith speed control

The 3-phase AC motor drive of PETER electronic up to 30kW "VersiDrive i 43C2-E" provides the most efficient solution for all types of drive applications. It features precise speed, torque and position control functions that are suitable for both sensor and sensorless types of synchronous and asynchronous motors. The 3-phase AC drives VersiDrive i ... C2 Series is also equipped with built-in PLC functions and supports the CANopen Master/Slave extension for the ultimate in system flexibility and fast data exchange. Features •speed control, torque and bearing control •induction motors, PM motors •safe torque shutdown STO •detachable operating unit •max. rotating field frequency 599Hz •integrated braking chopper •degree of protection IP20 •integrated mains filter •USB port •integrated MODBUS •integrated CANopen •replaceable fan Functions •control and setpoint entry via terminals, •operating units and bus systems •built-in PLC function •potential-free control and signalling contact •motor catch function •PWM in-/output •PI controller Options: (please see accessories) •Profibus DP •Modbus TCP/IP •EtherNet/IP •EtherCAT •DeviceNet •ProfiNET •BACnet •E/A extensions •operating software Preferred application areas •centrifuges •ventilators •pumps •conveying systems •grinding machines •woodworking machines •printing machines •packaging machines •textile machines •others
