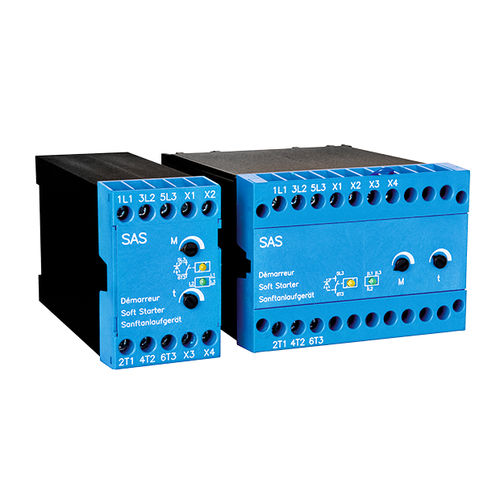

Motor soft starter SAS series

single-phaseeconomicalDIN rail mounted

Features •single-phase controlled soft starter •all devices for pole-changing motors •dual-voltage, for 400V and 230V networks •terminal arrangement suitable for switchgear connection •for snap-mounting on 35mm standard rail •integrated bypass relay •no mains neutral conductor (N) required •special voltages up to 640V •also for single-phase applications •degree of protection IP 20 Functions •soft start •2 separately adjustable parameters •starting torque, starting time •control contact for pole-changing motors Upon request: •potential-free input •control voltage 10 ... 30VDC •SAS 3 up to SAS 11: •suitable standard up to 480V •special voltages 500V up to 640V •(all types in 100mm-housing) Preferred application areas •transformer soft-start •door drives •packaging machines •conveyors •others
