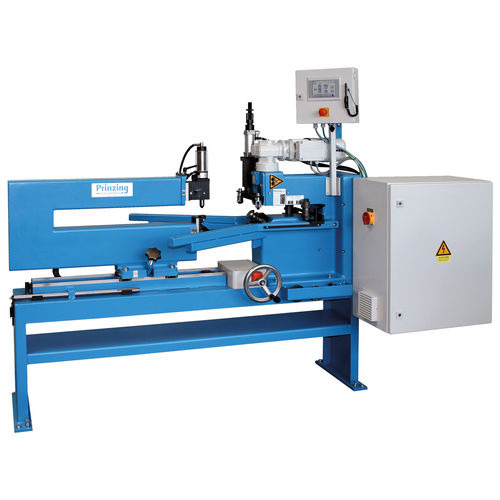

Circular shear KSE series

sheet metalmotorized

The circular shears in the sizes KSE 25 - 100 are basically all motor driven. You are able to process round blank diameters between 80 mm and 3.200 mm. The max. sheet thickness can be 10 mm. They meet the highest standards of industrial manufactured sheet metal blanks by cutting and flanging. The drive of the machine happens single-, two-stage or infinitely variable; on upper- and lower shaft. The bail adjustment happens manual. The KSE 31 has got a motor driven cutter infeed for that, a pneumatic sheet-blank holder and a pneumatic clamping cylinder. The operation happens by a control panel and a triple foot switch. If needed two hand operation. The KSE 60 additionaly has a motor driven bail adjustment and a diameter programming as well as an opertation by the touchscreen and a triple foot switch. If needed two hand operation.
