Service valve HA series

ballstainless steelPEEK

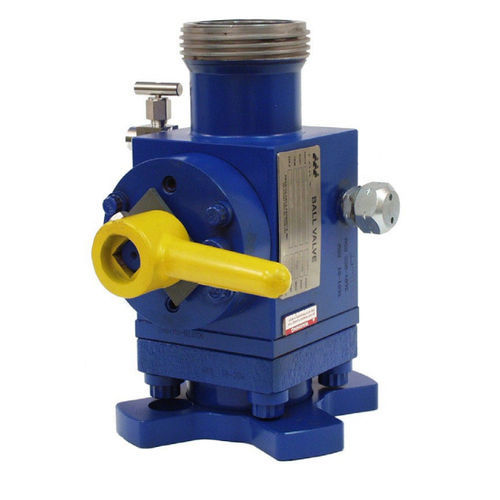

Three different temperature rated ball-type service valves are available for use with our retrieval tools: standard, low and high temperature. The female threads on this valve are industry- standard ACME threads and may be used with any Metal Samples high pressure access fitting as well as any other 2” access fitting. The valves have a bleed valve located on the non-process side of the ball. This bleed valve may be used to drain the retrieval tool, sample process, or be used as a path for back-pressuring. All valves are NACE MR0175 compliant for use in sour service, factory pressure tested for a working pressure of 6000 psi* W.O.G., and meet API6FA and API607 fire safe requirements. The service valve is a portable valve that is used in conjunction with a retrieval tool. The service valve is threaded onto an access fitting in preparation for retrieving a plug. Next, the retrieval tool is attached to the service valve. System pressure is then equalized in the retrieval tool by unseating the plug. Occasionally deposit buildup in access fitting bodies does not allow for pressure equalization through the plug. If this occurs, the retrieval tool can be back pressured by use of a back-pressure kit (P/N - HA104000). Once pressure equalization has occurred, the plug is removed and the valve is shut. Finally, the retrieval tool is removed from the valve allowing access to the plug and its acces-sory. A Blanking Cap/Plug Assembly (P/N - PS5612) may be installed on the valve as an additional safety measure, if required.
