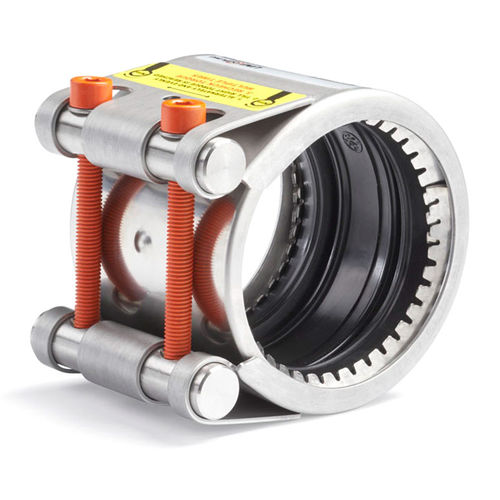

Round tube connector GS16A4N21-24

plasticPEPVC

PEWOGRIP PN 25 TENSION-PROOF with NBR Sealing -20°C up to +80°C in A4 (316/1.4571) Quality Ø min./max. Width 45 mm 1 Closure Important information: Follow the installation and disassembly instructions. PN = Working pressure with consideration of the application loads for industrial applications. In case of shipbuilding applications, PN is one PN class below, e.g. PN 25 Industry = PN 16 Shipbuilding. PN classes = PN 2.5; PN 6; PN 10; PN 16; PN 25 Test pressure = PN x 1.5 The pressure data is given under the precondition that radially rigid steel pipes with a minimum wall thickness are used under static load. Use the Technical Manual for other pipe materials. Band inserts are necessary for special applications. Support sleeves must be used for thermoplastic plastic pipes (PE/PP/PB/PVC/ABS...).
