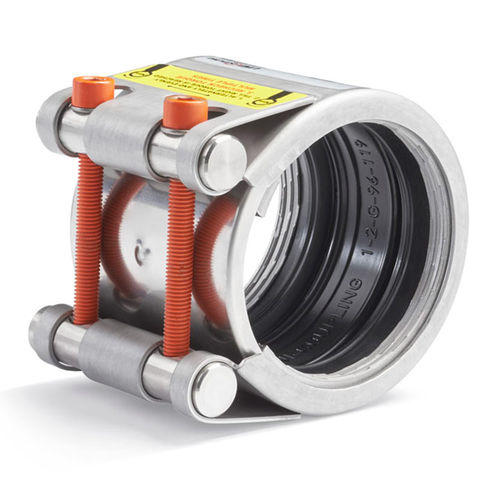

Metal pipe coupling PGS16A4E39-43

EPDM

PEWOPLASTGRIP PN 16 TENSION-PROOF with EPDM Sealing -30°C up to +125°C in A4 (316/1.4571) Quality Ø min./max. 39-43 mm Width 60 mm 1 Closure Important information: Follow the installation and disassembly instructions. PN = Working pressure with consideration of the application loads for industrial applications. In case of shipbuilding applications, PN is one PN class below, e.g. PN 25 Industry = PN 16 Shipbuilding. PN classes = PN 2.5; PN 6; PN 10; PN 16; PN 25 Test pressure = PN x 1.5 The pressure data is given under the precondition that radially rigid steel pipes with a minimum wall thickness are used under static load. Use the Technical Manual for other pipe materials. Band inserts are necessary for special applications. Support sleeves must be used for thermoplastic plastic pipes (PE/PP/PB/PVC/ABS...).
