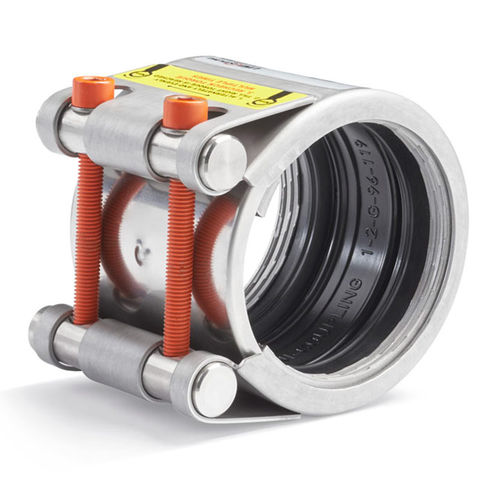

Metal pipe coupling PGS16A4N39-43
NBRfor industrial applications

metal pipe coupling
metal pipe coupling
metal pipe coupling
Add to favorites
Compare this product


Characteristics

Material
metal, NBR
Product applications
for industrial applications

Description

PEWOPLASTGRIP PN 16 TENSION-PROOF with NBR Sealing -20°C up to +80°C in A4 (316/1.4571) Quality Ø min./max. 39-43 mm Width 60 mm 1 Closure Important information: Follow the installation and disassembly instructions. PN = Working pressure with consideration of the application loads for industrial applications. In case of shipbuilding applications, PN is one PN class below, e.g. PN 25 Industry = PN 16 Shipbuilding. PN classes = PN 2.5; PN 6; PN 10; PN 16; PN 25 Test pressure = PN x 1.5 The pressure data is given under the precondition that radially rigid steel pipes with a minimum wall thickness are used under static load. Use the Technical Manual for other pipe materials. Band inserts are necessary for special applications. Support sleeves must be used for thermoplastic plastic pipes (PE/PP/PB/PVC/ABS...).

Catalogs

No catalogs are available for this product.

See all of PEWOBAR GmbH‘s catalogs
