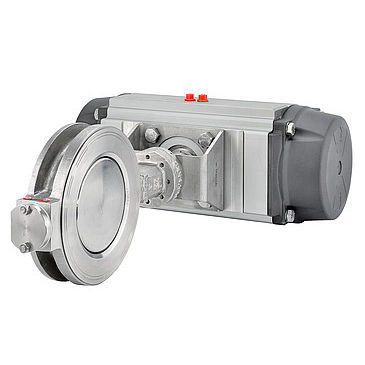

Butterfly valve BR 14 seriespneumaticfor controlshut-off
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatic
- Function
- for control, shut-off
- Body
- double, stainless, cast, PTFE, steel, metal
- Applications
- hygienic
- Other characteristics
- ISO, DIN, locking, low-pressure, fire-safe
- DN
Min.: 2 mm
(0.079 in)Max.: 32 mm
(1.26 in)- Temperature
Min.: -60 °C
(-76 °F)Max.: 350 °C
(662 °F)
Description
Pneumatic control valve
VALVE STYLE
Butterfly valve
USAGE
Throttling service
Low-pressure service
On/off service
Hygienic service
VERSION
ANSI
SUPPLY
Pneumatic
VALVE SIZE
PRESSURE RATING
Class 150 to Class 300
LINING
without
Special features
Consisting of cast double-eccentric butterfly valve and actuator
DIN ISO 5211 interface as standard
Butterfly valve body made of steel or stainless steel
Lug-type and wafer-type bodies
Tight shut-off in both directions
Very wide control range
Low initial breakaway torque
PTFE V-ring packing loaded by disk springs
TA Luft
Blow-out-proof shaft
Soft or metal seal
Fire-safe versions according to API (metal seal)
Uninterrupted facing
Face-to-face dimensions according to DIN EN 558, Series 20
Leakage requirements according to DIN EN 12266
Accessories
Lever
Locking facility
Air filters
Options
Stem extension
Double packing
Primary seal (O-ring)
Adjustable packing
Grooved flanges according to DIN EN 1092 (Series 16 and 25 only)
Special materials
