Ball valve BR 20b

pneumaticfor controldouble

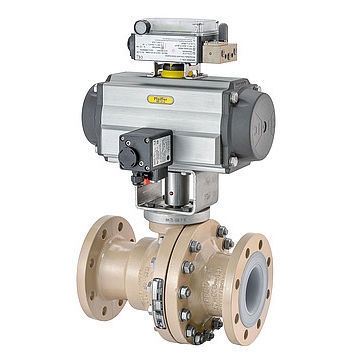

Pneumatic control valve VALVE STYLE Ball valve USAGE Low-pressure service On/off service VERSION DIN SUPPLY Pneumatic VALVE SIZE PRESSURE RATING PN 10 to PN 16 LINING PFA Special features Consisting of PFA-lined ball valve and actuator Suitable for (highly) corrosive process media DIN ISO 5211 interface as standard Straight-through flow path High Kv coefficients 3 mm PFA lining Single-piece ball shaft Blow-out-proof shaft Replaceable PTFE seals PTFE V-ring packing loaded by disk springs TA Luft Face-to-face dimensions according to DIN EN 558, Series 1 Leakage requirements according to DIN EN 12266 Accessories Lever Locking facility Air filters Options Stem extension Stainless steel body Calibrated seals Linings of special compounds, such as conductive PFA Heating jacket Double packing Grooved flanges according to DIN EN 1092 FDA-compliant seals Balls and seals made of different materials
