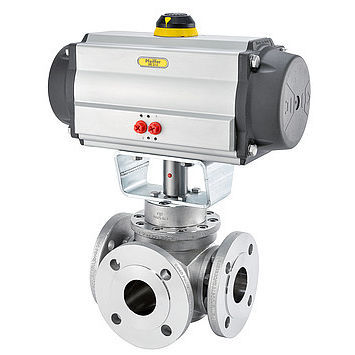

Ball valve BR 26

pneumaticfor controlmixing

Pneumatic control valve VALVE STYLE Ball valve USAGE Low-pressure service Mixing or diverting service On/off service Mixing service VERSION ANSI SUPPLY Pneumatic VALVE SIZE PRESSURE RATING Class 150 to Class 300 LINING without Special features Consisting of ball valve and actuator Multi-way stainless steel ball valve Horizontal three-way version with L- or T-port Vertical three-way version with L-port Horizontal four-way version 90° or 180° travel DN 100 and larger with trunnion-mounted ball Corrosion-resistant materials to withstand corrosive process media DIN ISO 5211 interface as standard PTFE V-ring packing loaded by disk springs TA Luft Blow-out-proof shaft Face-to-face dimensions according to DIN EN 558, Series 1 Leakage requirements according to DIN EN 12266 or API 598 Accessories Lever Locking facility Air filters Options Stem extension Special materials Gaskets not live loaded 5/4-way ball valve (DN 25 and larger) Special flow pattern Versions with special flanges Minimized dead cavities Sterile connection Heating jacket Cleaning connections High-temperature version Low-temperature version Special seat rings
