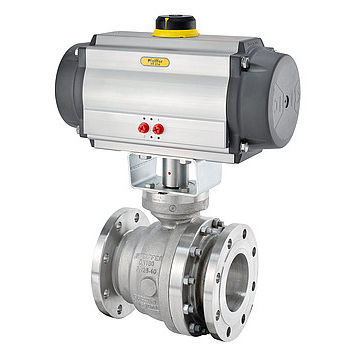

Ball valve BR 26s

pneumaticfor controldouble

Pneumatic control valve VALVE STYLE Ball valve USAGE Low-pressure service On/off service High-pressure service VERSION ANSI SUPPLY Pneumatic VALVE SIZE PRESSURE RATING Class 150 to Class 900 LINING without Special features Consisting of ball valve and actuator Steel or stainless steel ball valve Corrosion-resistant materials to withstand corrosive process media DIN ISO 5211 interface as standard PTFE V-ring packing loaded by disk springs TA Luft Blow-out-proof shaft Fire-safe according to API 607 Face-to-face dimensions according to DIN EN 558 or ASME B16.10/API 6D Flanges according to EN 1092 or ASME B16.5/API 6D Leakage requirements according to DIN EN 12266 or API 598 Accessories Lever Locking facility Air filters Options Stem extension Calibrated seals Special materials Metal sealing system Gaskets live loaded on both sides Trunnion-mounted ball Metal seal in the passage Heating jacket Double packing with test connection Grooved flanges according to DIN EN 1092 Fire-safe version Version for granulate Modified sealing systems Non-stick coating on the inside of the body Cleaning boreholes and cleaning nozzles
