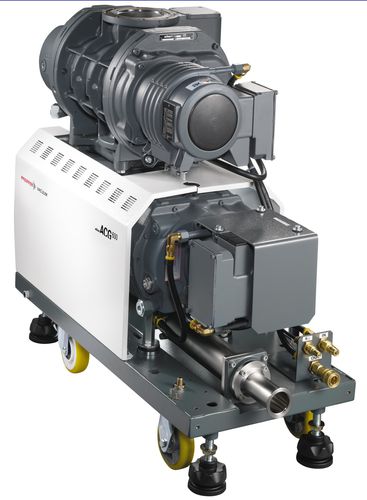

Roots vacuum pump ACG 600 series

oil-freemulti-stagewater-cooled

ACG 600 G Based on the multi-stage Roots technology, the ACG 600 G is the result of over 20 years of experience in manufacturing dry vacuum pumping solutions. ACG 600 G pumping groups provide all the benefits of clean and dry vacuum whenever particulate or oil contamination is an issue. A specific version is also available for the pump down of large chamber volumes > 1 m3. Applications • - Glass coating • - Other coaters • - General R&D applications • - Cylinder evacuation • - Foreline pumping of Roots pumps • - Freeze drying • - Leak detection systems Customer value • - Cleanliness: No risk of particulate contamination due to frictionless and oil-free pumping module • - High performance: High pumping speed, low power consumption, low ultimate pressure, resistant to harsh cycling • - High reliability: Based on multi-stage Roots technology, resulting in optimum up-time • - Extended life time between maintenance: Typical four years interval between complete overhaul on clean applications, simple bearing replacement Product description • - For higher pumping speed requirement, the ACG 600 G pumping group combines the ACP 120 G dry pump with a Roots pump 600 m3/h • - High pumping speed 560 m3/h • - Equipped with a purge gas port for slightly corrosive processes or for pumping down condensable media • - Optional large volume option
