Burr 1502 MICRO

solidfinishingdeburring

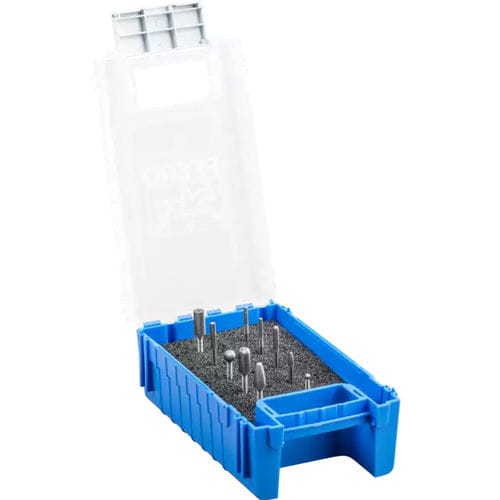

Tungsten carbide burrs with the MICRO cut are specifically designed for finishing and are used in areas in which mounted grinding points are used for example. They offer a higher stock removal rate and produce a high surface quality, particularly compared with conventionally milled surfaces. They also operate with low vibration and little noise. They maintain their geometry over their entire tool life, and are well-suited to manual and machine applications. Almost all materials up to a hardness of 68 HRC can be machined. Set 1502 MICRO contains ten small tungsten carbide burrs for finishing work in the most common shapes and dimensions. The sturdy plastic box protects the tools against dirt and damage. Advantages High surface quality. Unlike with mounted grinding points, there is no change in geometry due to wear and tear. Use on almost all materials up to 68 HRC. The highly accurate concentricity enables impact­free working without creating chatter marks and the drive is subject to less wear. Recommendations for use Particularly well suited to finishing, for very fine cleaning work, corrections in tool and mould construction or for sharpening cutting tools. To prevent vibrations, place the tools on powerful drives with an elastically supported spindle wherever possible. Observe the recommended rotational speeds. Materials that can be worked Annealed cast iron Black annealed cast iron (GTS, GJMB) Bronze Case-hardened steels Cast iron Cast steel Cobalt-based alloys Grey/nodular cast iron (GG/GJL, GGG/GJS) Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC) Hard non-ferrous metal Nickel-based alloys (e.g. Inconell and Hastelloy) Stainless steel (INOX) Steel
