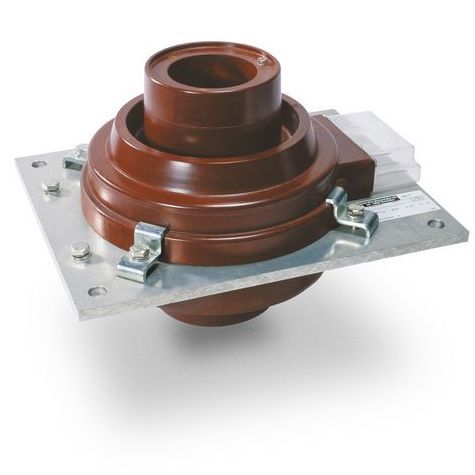

Current transformer AKQ series

measurementcast resinhigh-current

High current transformers type AKQ are used in busbar systems with uninsulated primary conductors and are designed for long term use. Type AKQ current transformers are usually used in installations featuring open busbar systems. They transform high currents up to 15,000 A into standardised, equivalent values for meters, measuring equipment and protection devices. Type AKQ current transformers are available for five different voltage levels: 7.2 kV, 12 kV, 17.5 kV, 24 kV and 36 kV. Six different hole diameters – i.e. six different construction sizes – are possible for each voltage level. The active parts are cast in epoxy resin. Depending on the requirements, up to five mutually galvanically isolated cores can be fitted inside the current transformer's epoxy resin casing and used to provide protection or for measurement tasks. The insulation from the busbar voltage is implemented in the epoxy resin in the current transformer. This transformer type thus meets all the insulation conditions (BIL or TE ratings) for the relevant voltage level. The inside of the hole has an electroconductive coating that must be connected to the primary busbar potential and that ensures that the stringent requirements regarding insulating strength and partial discharge conditions are met. A mounting plate with suitable mounting holes is provided for installation in the system. If the AKQ current transformer is to be installed in custom-made mounting plates or wall openings, this type can also be supplied only with clamps and no plate.
