On-board weighing system

automaticfor trucksfor waste

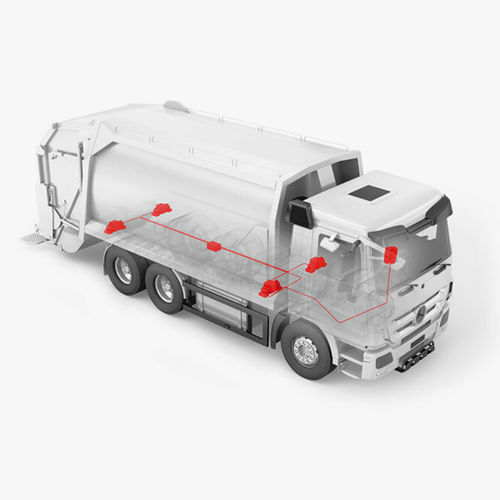

Simple, convenient and reliable! User-based invoicing with the weighing data of the container directly from the vehicle makes good business sense and increases customer confidence. PFREUNDT truck body scales can also be installed subsequently. • Automatic compensation for inclined positions up to 10% in two axes • Can be used directly in commercial business with an Assessment of Conformity FUNCTIONAL OVERVIEW • Legal for trade with Assessment of Conformity by PFREUNDT • Touch display for easy and intuitive operation • Extensive and adaptable master data and weighing data management • Automatic compensation for inclined positions up to 10% in two axes • ABW-3 for trucks with rigidly mounted bodies, for example on garbage collection and plank-bed vehicles • ABW-4 trucks with bodies on flexible bearings, for example in tanker vehicles or pallet vehicles • Scales can be installed and converted without difficulty in vehicles of different manufacturers SCOPE OF DELIVERY • WK60 electronics • 4 measuring elements with load cells • 1 tilt sensor in terminal box • 1 antenna OPTIONAL ACCESSORIES • Printer • Weighing tickets and weighing ticket box
