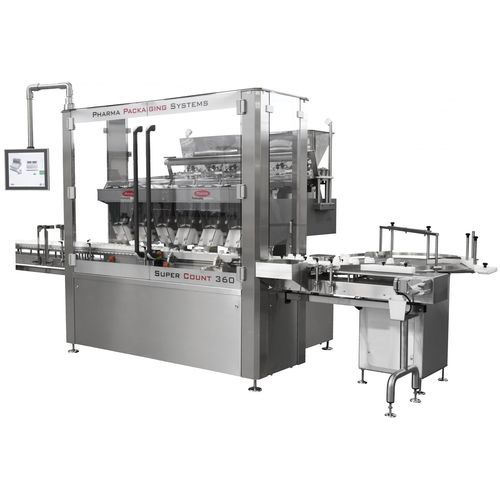

Capsule counting machine Pharmacount SC

tabletfor the pharmaceutical industryhigh-speed

The Pharmacount SC range of machines combine proven product feed technology with the latest in electronic controls and infrared count heads for extreme accuracy. Pharmacount SC range Features Include: • Contact parts are designed to be easily removed without the requirement of any tools. • High speed infrared sensors scanning at 34,000 times per second for high accuracy counting of all tablets and capsules as well as transparent soft and hard gelatine capsules. • Integrated chip and dust extraction system Designed to Achieve Optimum Product Control and Speed Using format free vibratory product feed trays the optimum product control and speed is achieved as product is regulated accurately and consistently by the hopper tray controls which continually monitor the product levels in the feed trays and switch the hopper feeder on and off accordingly. Every element of the feed system can be individually controlled to allow perfect set up every time. Flexfill System Ensures High Speeds and Accuracy on Smaller Counts The Pharmacount “Flexifill” system which is standard on the SC range allows the optimum configuration for any pack or product combination. Flexifill allows the user to operate the system with trap boxes so smaller counts are completed into the trap box and discharged into the bottle in one drop. This method allows counting to continue whilst bottles are indexed and results in higher speeds. With its open front chute arrangement the count and batching operation is highly visible allowing the parameters to be optimised for maximum speed whilst maintaining absolute control and accuracy.
