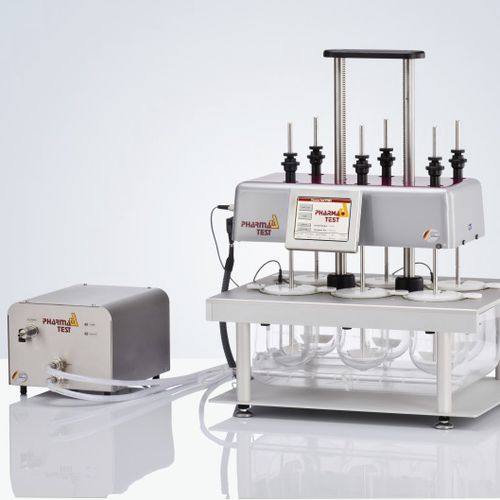

Dissolution tester PTWS 120D

for tabletsfor pharmaceutical applicationscompact

6-Station Tablet Dissolution Testing Instrument The PTWS 120D is a 6 position, single drive compact tablet dissolution testing instrument for solid dosage forms as described in USP chapter and EP section as well as the DAB and Japanese Pharmacopeia section . User Interface In keeping with our cutting edge design, a large color, touch screen allows control of the various mechanical features of the instrument such as the tool stirring speed, lift drive and heater. The instrument control is menu driven using a resistive touch screen and selection wheel technology. Visual signals on the display inform the user of the status of critical instrument parameters, e.g. bath target temperature not reached. Access to the instrument can be password controlled if required. If certain operational parameters form a regular feature of the daily routine, then these can be incorporated into a test method for faster set up. These parameters can be tool speed, target bath temperature, sampling time points and so on. The test method memory capacity is almost limitless. As soon as the test is started, a screen saver can be activated with the most important information displayed in large script so that this information remains visible even at time when the operator is not standing directly in front of the instrument. Stirring Tools The PTWS 120D uses the Pharma Test MonoShaft™ design. Tools consist of the main shaft plus interchangeable tool heads (adapters). The main shaft remains in place in the instrument regardless of the tool head being used.
