Dissolution tester ADS-L 120

for tabletsfor pharmaceutical applicationsautomatic

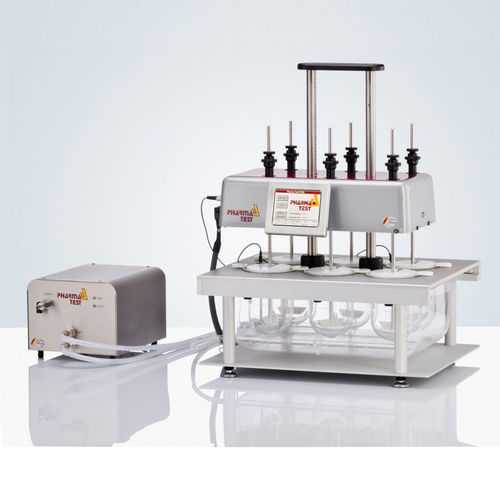

The online dissolution system ADS-L 120 consists of a Pharma Test dissolution tester PTWS 120, the DAD UV/VIS spectrophotometer TIDAS® L and a multi-channel pump. The system is controlled by the 21 CFR Part 11 compliant User friendly WinDiss ARGUS dissolution software. All instruments are compliant to regulations from USP/JP/CP/EP/USFDA/ASTM and come with a 2 years warranty. One company is responsible for the support of all components. The PTWS 120D Dissolution Tester The PTWS 120D is a 6 position 3-by-2 or 2-by-3 dissolution bath with an automated lift system for the instrument head. The media sampling is performed with resident sampling probes which are attached to the vessel covers. Each sampling probe can be equipped with in-line filters to avoid the transfer of undissolved particles into the measurement cells of the spectrometer. The TIDAS® L UV/VIS DAD Spectrometer with Cuvette Changer J&M’s latest models of laboratory spectrometers, the TIDAS® L series of diode-array spectrometers, follow an approach of integration. The diode array technology gives you rapid results over the full spectrum with each measurement. It feature an integrated Windows based PC with a large, high-resolution touch screen running the WinDiss ARGUS and the additional spectrometer software TIDASDAQ3. By integrating the PC into the spectrometer unit the TIDAS® L instruments make excellent use of the limited bench space in today’s typical laboratories. The instruments can also easily be connected to the company’s network.
