Online tester ADS-L 820

dissolutionfor tabletsfor pharmaceutical applications

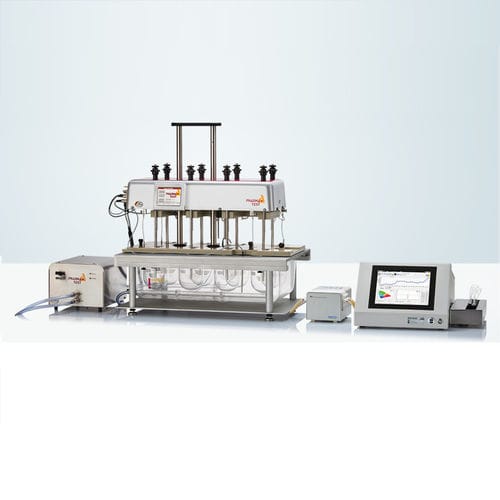

Fully Automated Tablet Dissolution Testing System The online dissolution system ADS-L 820 consists of a Pharma Test dissolution tester PTWS 820D, the DAD UV/VIS spectrophotometer TIDAS® L and a multi-channel pump. The system is controlled by the 21 CFR Part 11 compliant user friendly WinDiss ARGUS dissolution software. All instruments are compliant to regulations from USP/JP/CP/EP/USFDA/ASTM and come with a 2 years warranty. One company is responsible for the support of all components. The PTWS 820D is an 8 position 4-by-2 or 2-by-4 dissolution bath with an automated lift system for the instrument head. The media sampling is performed with the EPE-820 moving the sampling tubes into the media to the selected sampling position. Each sampling tube can be equipped with in-line filters to avoid the transfer of undissolved particles into the measurement cells of the spectrometer. The TIDAS L DAD Spectrometer with Cuvette Changer J&M’s latest models of laboratory spectrometers, the TIDAS® L series of diode-array spectrometers, follow an approach of integration. The diode array technology gives you rapid results over the full spectrum with each measurement. It feature an integrated Windows based PC with a large, high-resolution touch screen running the WinDiss ARGUS and the additional spectrometer software TIDASDAQ 3. By integrating the PC into the spectrometer unit the TIDAS® L instruments make excellent use of the limited bench space in today’s typical laboratories. The instruments can also easily be connected to the company’s network.
