Online tester ADS-L 1220

dissolutionfor tabletsdiagnostic

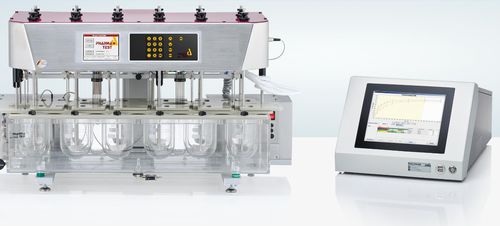

The online dissolution system ADS-L 1220 consists of a Pharma Test dissolution tester PTWS 1220, the DAD UV/VIS spectrophotometer TIDAS® L and a multi-channel pump. The system is controlled by the 21 CFR Part 11 compliant user friendly WinDiss ARGUS dissolution software. All instruments are compliant to regulations from USP/JP/CP/EP/USFDA/ASTM and come with a 2 years warranty. One company is responsible for the support of all components. The PTWS 1220 The PTWS 1220 is a 12 position 6-by-2 dissolution bath with an automated lift system for the instrument head. The media sampling is performed with the EPE-1220 moving the sampling tubes into the media to the selected sampling position. Each sampling tube can be equipped with in-line filters to avoid the transfer of undissolved particles into the measurement cells of the spectrometer. The TIDAS® L DAD Spectrometer with Cuvette Changer J&M’s latest models of laboratory spectrometers, the TIDAS® L series of diode-array spectrometers, follow an approach of integration. The diode array technology gives you rapid results over the full spectrum with each measurement. It feature an integrated Windows based PC with a large, high-resolution touch screen running the WinDiss ARGUS and the additional spectrometer software TIDASDAQ3. By integrating the PC into the spectrometer unit the TIDAS® L instruments make excellent use of the limited bench space in today’s typical laboratories. The instruments can also easily be connected to the company’s network.
