Online tester ADS-L 1420

dissolutionfor tabletsfor pharmaceutical applications

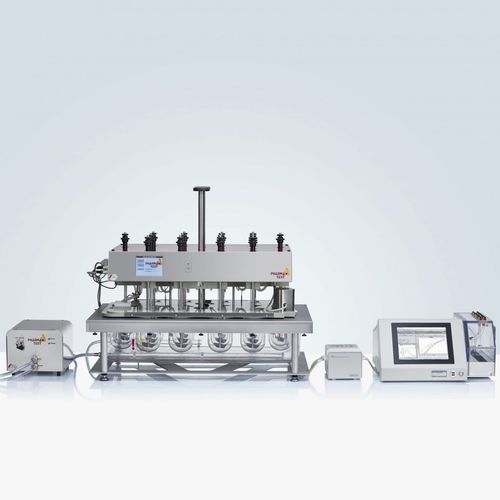

The online dissolution system ADS-L 1420 consists of the 14+2 vessel Pharma Test dissolution tester PTWS 1420, the DAD UV/VIS spectrophotometer TIDAS® L and a multi-channel pump. The system is controlled by the 21 CFR Part 11 compliant user friendly WinDiss ARGUS dissolution software. All instruments are compliant to regulations from USP/JP/CP/EP/USFDA/ASTM and come with a 2 years warranty. One company is responsible for the support of all components. The PTWS 1420 is a 7+7+2 position 7-by-2 dissolution bath with an automated lift system for the instrument head. An automated sampling manifold EPE is used to perform dissolution tests as per USP Apparatus 1, 2, 5 and 6. Each 316 stainless steel tube which is part of the EPE sampling system can be equipped with in-line filters to avoid the transfer of undissolved particles into the measurement cells of the spectrometer. The tablet magazine includes magnetic holders for the tube cleaning device. The TIDAS L DAD Spectrometer with Cuvette Changer J&M’s latest models of laboratory spectrometers, the TIDAS L series of diode-array spectrometers, follow an approach of integration. The diode array technology gives you rapid results over the full spectrum with each measurement. It feature an integrated Windows based PC with a large, high-resolution touch screen running the WinDiss ARGUS and the additional spectrometer software TIDASDAQ3. By integrating the PC into the spectrometer unit the TIDAS L instruments make excellent use of the limited bench space in today’s typical laboratories. The instruments can also easily be connected to the company’s network.
