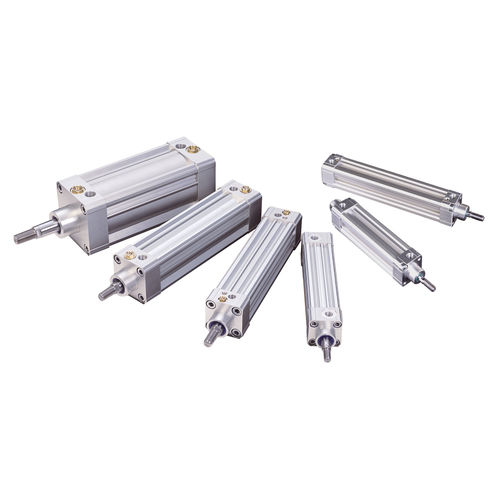

Pneumatic cylinder CV seriesdouble-actinganodized aluminumstandard
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Configuration
- double-acting
- Material
- anodized aluminum
- Other characteristics
- standard
- Stroke
Max.: 1,000 mm
(39.37 in)Min.: 500 mm
(19.685 in)- Torque
Max.: 40 Nm
(29.502 ft.lb)Min.: 4.5 Nm
(3.319 ft.lb)
Description
Overview
Series CV Pneumatic ISO Cylinders are full-featured, ISO and VDMA standardized linear actuators for superior performance. Optional Port Controls® regulate speed through the entire stroke and an optional Rodlok holds the rod in place wherever desired. A PTFE wear ring is included for greater support and increased actuator life. A variety of mounting accessories provide for simple integration. Series CV ISO Cylinders are designed to be extremely versatile with a multitude of options for use in any industry.
Advantages
Anodized aluminum alloy heads, caps and tubes, durable, robust, longer life, drop-in replacement.
