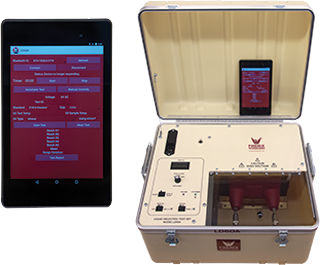

Insulating oil hipot tester LD60A

Testing Applications Measure the breakdown voltage of insulation fluids used in transformers, capacitors, bushings and related high voltage equipment. With the appropriate oil vessel test cell, these test sets are designed to perform tests in accordance with standards ASTM D1816, ASTM D877, IEC 60156, BS 148, VDE 0370, plus other applicable standards. Description The controls located on the front panel include an easy-to-read digital voltmeter, on/off and remote mode switch, rate of rise selector, start/stop/reset switch, and device pair switch with indicator lamp to permit Bluetooth connection. Test standards are preloaded into the Android device. The test compartment is provided with a see-through lid interlocked to the test circuit with a limit switch to ensure full safety during operation. The liquid to be tested is placed in the test cell and then placed in the test compartment on the cradle contacts, the rate of rise is selected, the test chamber lid closed, and the switch moved to start position. The test set will automatically raise the voltage. When a breakdown of the liquid occurs, the test sample failure lamp will illuminate, and the meter will hold the breakdown voltage level.
