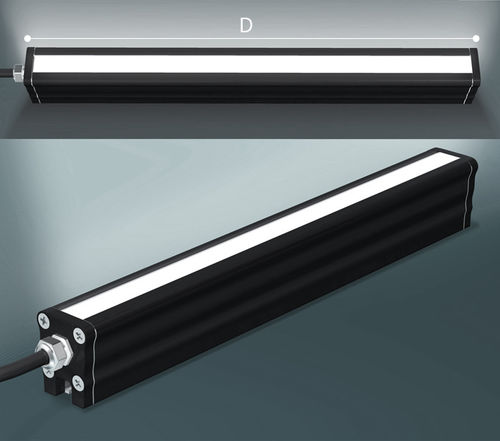

Bar light PHLOX_LEDW_BAR series

frontlightLEDcolored

1 million cd/m2 bar lighting for frontlight inspection Bar lights by PHLOX® offer the best life cycle, the best chromaticity stability and the best luminance on the market, all in an ultra compact aluminium body. Very short time delivery on standard size (48 hours) . • Available in 18 standard sizes (useful mm): from 64 to 526mm x 31 x 24.5mm X = 64 | 91 | 118 | 145 | 172 | 199 | 227 | 254 | 281 | 308 | 335 | 362 | 389 | 416 | 443 | 470 | 497 | 526 • Available in 18 standard sizes (useful inches): from 2.56 to 21.8 x 1.22 x 0.96" X =2.51 | 3.58 | 4.65 | 5.70 | 6.77 | 7.83 | 8.93 | 10.00 | 11.06 | 12.12 | 13.19 | 14.25 | 15.32 | 16,38 | 17.44 | 18.50 | 19.56 | 20.71 • Luminance ≥1.000.000 cd/m2 (1) • Colour Temp. 5.700°K (± 500) • IR Wavelength: 850 nm • Red Wavelength: 630 nm • All sizes possible up to 2 linear meters / 6.56 linear feet • Standard colours: White + Red + IR • Custom colours available: Green + Blue + UV + RGB • IP40 (IP65 on request) • Expected life > 100.000 hours Each PHLOX® Bar light is provided with: - 24 months warranty
