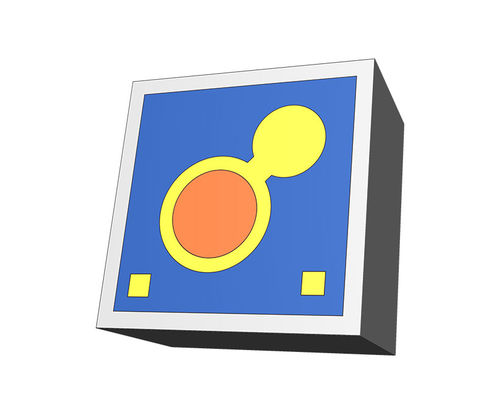

Photodiode microchip XSJ-10-APD4-80X

Avalanche photodiode chip (APD chip) is a kind of active device that provides a built-in gain and amplifies the photocurrent. This product features is anode on top and cathode on back, with top-illuminated active area of Φ80μm for easy optical assembly; high responsivity, high multiplication factor and low dark current. The high-performance 2.5Gbps APD Chip and TIA combined TO-CAN can improve the sensitivity of optical receiver, applications that enable data transmission for today’s fiber-to-the-home (FTTH). 1. Φ80μm active area. 2. Anode on top and cathode on back. 3. Low dark current. 4. Excellent responsivity and high gain. 5. Data rate up to 2.5Gbps above. 6. Excellent reliability: All chips have passed the qualification requirements as specified by Telcordia -GR-468-CORE. 7. 100% testing and inspection. Applications 1. Eye-safe Laser Range Finding. 2. Optical Time Domain Reflectometer(OTDR). 3. Optical communication systems.
