Photodiode microchip XSJ-10-G5-55
Add to favorites
Compare this product
Characteristics
- Options
- photodiode
Description

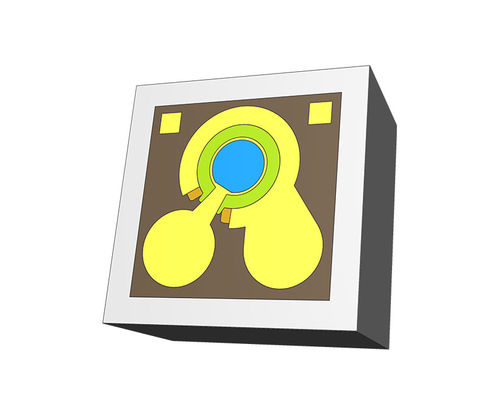

This high data rate 14Gbps photodiode chip is GaAs top- illuminated PIN structure. Features is high responsibility, low capacitance, low dark current, active area size is Φ55μm, anode and cathode bond pad on top for TO-CAN package wire-bond, application in fiber channel data transmission, 10Gigabit Ethernet and Multi-mode communication etc.
1. Φ55μm active area.
2. Low capacitance and low dark current.
3. Data rate up to 14Gbps.
4. Excellent reliability: All chips have passed the qualification requirements as specified by Telcordia -GR-468-CORE.
5. 100% testing and inspection.
Applications
1. 10Gigabit BASE-SR Ethernet.
2. 8Gbps Fiber Channel data transmission.
3. FDR InfiniBand data transmission.
