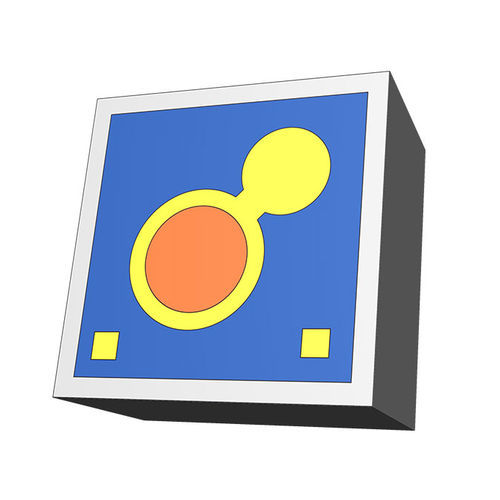

Photodiode microchip XSJ-10-APD4-80-TR1

Avalanche photodiode chip (APD chip) is a kind of active device that provides a built-in gain and amplifies the photocurrent. This product features is anode on top and cathode on back, with top-illuminated active area of Φ80μm for easy optical assembly; high responsivity, high multiplication factor and low dark current. The high-performance 2.5Gbps APD Chip and TIA combined TO-CAN can improve the sensitivity of optical receiver, applications that enable data transmission for today’s fiber-to-the-home (FTTH). 1. Φ80μm active area. 2. Anode on top and cathode on back. 3. Low dark current. 4. Excellent responsivity and high gain. 5. Reflectivity<1.5% at 1550nm±50nm, <6% over 1250nm～1700nm. 6. Data rate up to 2.5Gbps above. 7. Excellent reliability: All chips have passed the qualification requirements as specified by 8. Telcordia -GR-468-CORE. 8. 100% testing and inspection. 9. RoHS2.0 (2011/65/EU) compliant. Applications 1. Eye-safe Laser Range Finding. 2. Optical Time Domain Reflectometer(OTDR). 3. Optical communication systems.
