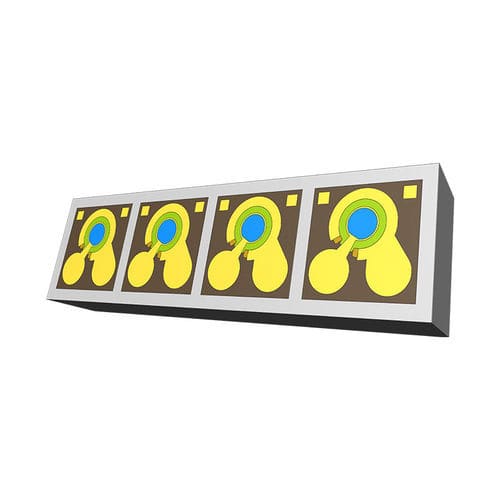

PIN photodiode XSJ-10-G5-55-K4

Description The high-speed 4X14Gbps photodetector chip is a GaAs positive input PIN structure, characterized by high responsiveness, low capacitance, and low dark current; The size of the photosensitive zone is Φ 55um, the anode and cathode pads are located on the front side for convenient TO-CAN packaging of solder wires, mainly used for fiber channel transmission, 10Gigabit Ethernet, and multimode communication. Features 1. Φ55μm active area. 2. Low capacitance, low dark current, High responsibility. 3. Die pitch: 250μm 4. 100% testing and inspection 5. Excellent reliability: All chips have passed the qualification requirements as specified by Telcordia -GR-468-CORE. 6. RoHS2.0 (2011/65/EU) compliant. Applications 1.850nm 14Gbps AOC 2. HDMI 2.1
