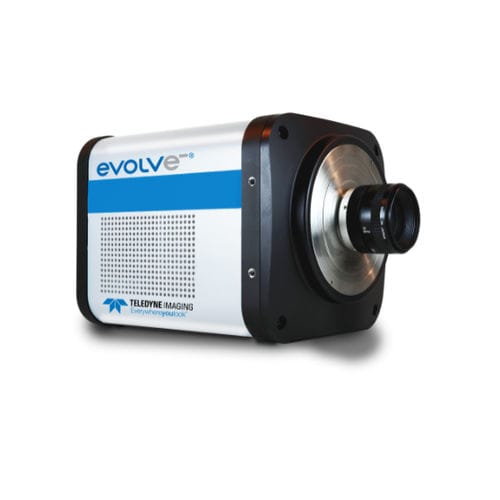

Industrial camera Evolve® series

for scientific applicationsastronomydigital

The Evolve® is a high-resolution, back-illuminated EMCCD providing high sensitivity for the lowest light applications. With proprietary Teledyne technology throughout, the Evolve provides a new standard in EMCCD performance and reliability. For single molecule imaging, TIRF microscopy, and more, achieve the best imaging performance when every photon counts. • >95% quantum efficiency • 10, 13 and 16 μm pixel size options • Ultra-high-speed readout • Highly stabilized deep cooling • Featuring Teledyne EMCCD technology Key Features Built with Teledyne EMCCD Technology Here at Teledyne, collaboration is opening new doors for meeting customers’ imaging needs. The Evolve range includes world-leading EMCCD sensors designed and manufactured by Teledyne e2v. These are integrated into cutting edge cameras by Teledyne Photometrics. Across Teledyne, our united experience and expertise crosses application boundaries from astronomy, life science, industrial imaging and more. We have the answers to your imaging needs. Superior Signal to Noise for Faint Signals When you can count your photons on one hand, you need the lowest noise possible. Alongside back-illumination for maximum quantum efficiency, the Evolve series uses Electron Multiplication to achieve a read noise as low as 0.25e- without sacrificing frame rate. Various Pixel Size Options To Match Your Optical System Pixel size choice is a balance of resolution and sensitivity – larger pixel areas collect more photons. The Evolve range includes 13 and 16 μm pixel cameras to provide optimum sensitivity. However, resolution was previously limited for EMCCDs due to a lack of smaller pixel size options.
