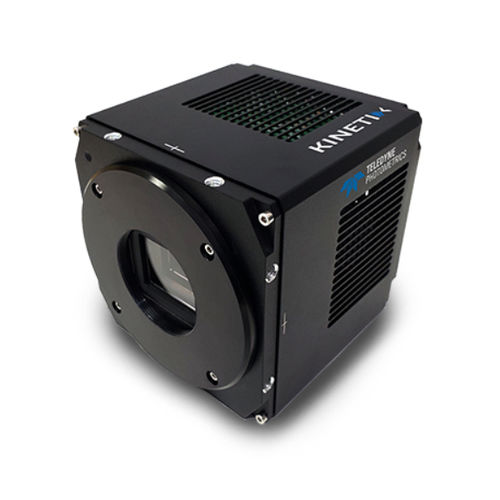

Microscope camera Kinetix

digitalscientific visionnear-infrared

The back-illuminated Kinetix Scientific CMOS (sCMOS) camera delivers the fastest speed and the largest field of view with the most balanced pixel size and near perfect 95% quantum efficiency. • 498 Frames per Second • 29.4 mm Diagonal Field of View • 0.7 e- Read Noise • 95% Quantum Efficiency • 6.5 µm x 6.5 µm Pixel Area Key Features Taking advantage of an 8-bit readout mode, the Kinetix sCMOS delivers a tremendous 498 frames per second (fps), full frame with a 29.4 mm diagonal field of view. The optimized line time allows the speed to significantly outperform typical sCMOS devices, delivering over 5000 megapixels/second – over a 10-fold improvement. Large Field Of View The 29.4 mm square sensor of the Kinetix is designed to increase throughput, maximize the amount of data captured in a single frame and take full advantage of new, larger field of view microscopes. At 29.4 mm diagonal, the Kinetix sensor has a 2.4x larger imaging area than typical sCMOS cameras allowing the user to significantly speed up data acquisition. The Kinetix back-illuminated sCMOS camera achieves a near-perfect 95% quantum efficiency. By bringing the light in from the back of the sensor, photons land directly onto the light receiving surface, maximizing light collecting capability. The Kinetix combines 95% quantum efficiency with a low 0.7 e- read noise to deliver the most sensitive sCMOS camera at 498 frames per second.
