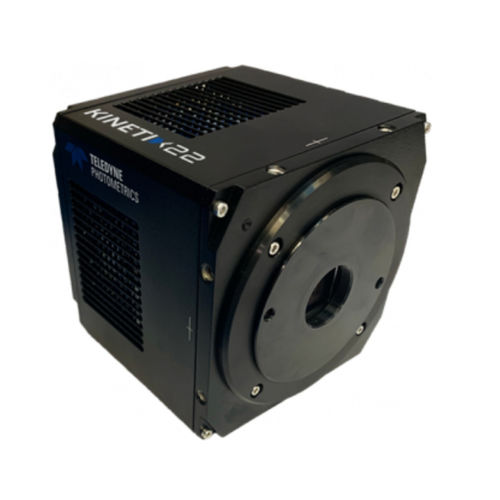

Microscope camera Kinetix22

digitalscientific visionsCMOS

The back-illuminated Kinetix22 Scientific CMOS (sCMOS) camera delivers high speed imaging with an optimized field of view for most modern microscopes, the most balanced pixel size and near perfect 95% quantum efficiency. • 22 mm Field Of View • 2400 x 2400 6.5 μm Pixels • 498 Frames Per Second • 95% Quantum Efficiency • 0.7 e- Read Noise Ultimate Flexibility The Kinetix22 features four modes, allowing users to prioritize different camera specs, optimise imaging, and avoid compromise. The 8 bit Speed mode offers 498 fps across the full frame, 12 bit Sensitivity mode offers low 1.2 e- read noise while operating at ~90 fps, 16 bit Dynamic range has large full well capacity for varied signal levels in the sample, and 16 bit Sub-Electron mode offers EMCCD like sensitivity with 0.7 e- read noise. The Kinetix22 delivers a tremendous 498 frames per second (fps), full frame across the entire 22 mm diagonal field of view. This speed significantly outperforms typical sCMOS devices while featuring a higher megapixel sensor. The optimized line time results in a data rate of almost 3000 megapixels/second, around 7x greater than typical sCMOS devices.
