Photon detector PLANACON™

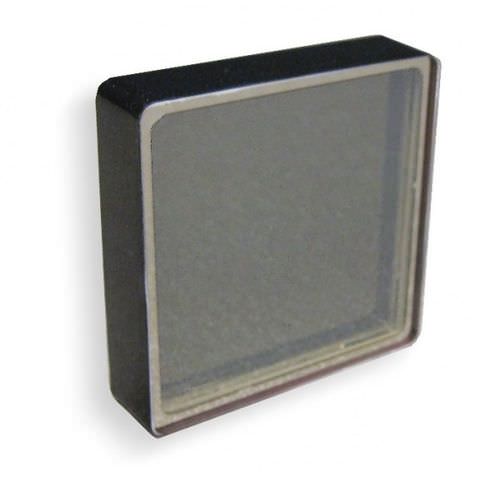

The Planacon™ family of products are square-shaped MCP-PMTs designed to capture fast timing events such as those found in single photon counting applications. - Specialized Medical Imaging - Cherenkov – RICH, TOF, TOP, DIRC - High Energy Physics Detectors - Homeland Security Description Planacons provide superior immunity to magnetic influence, down to 2T, while providing high quality images. Photonis' Planacon brings all the high speed, single photon counting features of a traditionally round MCP-PMT while providing a square sensor, allowing multiple sensors to be tiled together to image large areas. Plancons can be ordered in two sizes, 53mm2 and 27mm2 with a choice of photocathodes to optimize your spectral requirements. Larger Planacons are ideal for use in high energy physics applications to monitor and measure photon activity over a large area. Miniature Planacons can be used in medical devices such as PET scan units. Planacons are also radiation hardened, making them useful in space exploration. We now also offer a high voltage resistive divider network as a safe way to power your Planacon detector and avoid mis-wiring. The schematic corresponds to the recommended voltage divider in the Planacon datasheet. We use only high quality components, heavily overspecified on high voltage ratings, and the exposed contacts potted in a high voltage grade compound. You can power it through a standard SHV connector (at the far end), while the connection with the Planacon goes through a 5-pin Lemo high voltage connector (visible in front).
