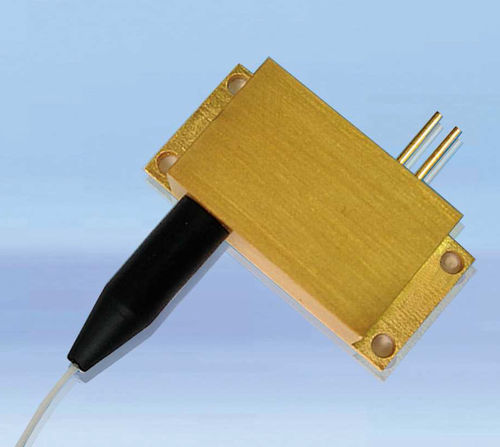

Fiber-coupled laser diode M793±3-8-F105/22-T4RCWfiberinfrared
Add to favorites
Compare this product
Characteristics
- Operational mode
- CW
- Technology
- fiber
- Spectrum
- infrared
- Applications
- pumping, for medical equipment
- Other characteristics
- fiber-coupled
- Power
8 W
- Wavelength
793 nm
Description
By adopting specialized fiber-coupling techniques, the manufactured diode laser modules have a high efficiency, stability and superior beam quality. The modules are achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics. Inspection and burn-in procedures guarantee reliability, stability and long lifetime of each modules.
Features
- 8W CW output power - 2μm laser laser pumping
- 105μm fiber core diameter - Medical equipment
- Feedback protection
Applications
- 2μm laser laser pumping
- Medical equipment
