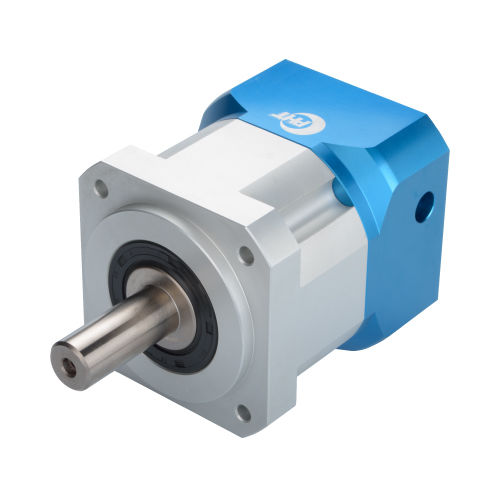

Planetary gear reducer DS070 coaxialhollow-shaft20 - 50 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Torque
- 20 - 50 Nm, 50 - 100 Nm
- Performance
- high-precision
- Applications
- for servo motors
- Rotational speed
5,000 rpm
(31,415.93 rad.min-1)- Backlash
Max.: 0.13 °
Min.: 0.08 °
- Gear ratio
Max.: 100 unit
Min.: 3 unit
Description
DS series (High Thermal Dissipation)
Backlash 5~8 arc min
Noise 64-65 dB
Life Time 20,000 hrs
Sizes 60, 70, 90, 120, 150, 180, 220
Catalogs
No catalogs are available for this product.
See all of PHT Vertex Precision Components Corporation‘s catalogsOther PHT Vertex Precision Components Corporation products
