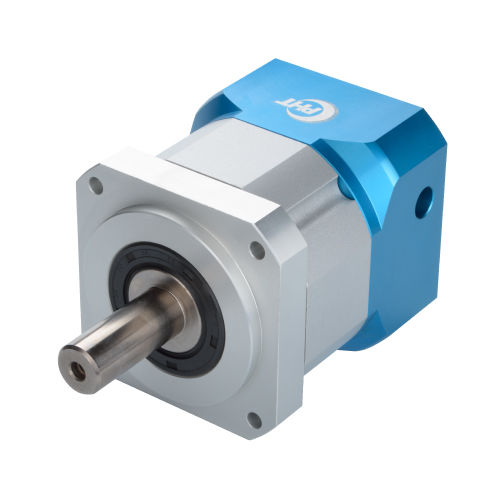

Planetary gear reducer DM070
helical gearcoaxialhollow-shaft

planetary gear reducer
planetary gear reducer
Add to favorites
Compare this product

Go to the PHT Vertex Precision Components Corporation website for more information

Characteristics

Type
planetary, helical gear
Shaft orientation
coaxial
Shaft configuration
hollow-shaft
Torque
20 - 50 Nm, 50 - 100 Nm
Performance
precision
Applications
for servo motors
Other characteristics
aluminum
Rotational speed

5,000 rpm
(31,415.93 rad.min-1)

Backlash

Max.: 0.13 °

Min.: 0.08 °

Gear ratio

Max.: 100 unit

Min.: 3 unit

Description

The DS070 from PHT Vertex Precision Components Corporation, is a planetary gear reducer with rated output torque of 60 Nm. Features of this gear reducer include high torque and rigidity, allowed by utilizing straight gear instead of helical gear. It also provides high precision and low backlash. Plus, the aluminum construction of the outer shell makes it easy to release heat. Thus, the gear reducer is suitable for heat releasing applications. It is also lightweight compared to tradional gearboxes. The torsional stiffness of the DS070 is 6.5 Nm / Arcmin.
