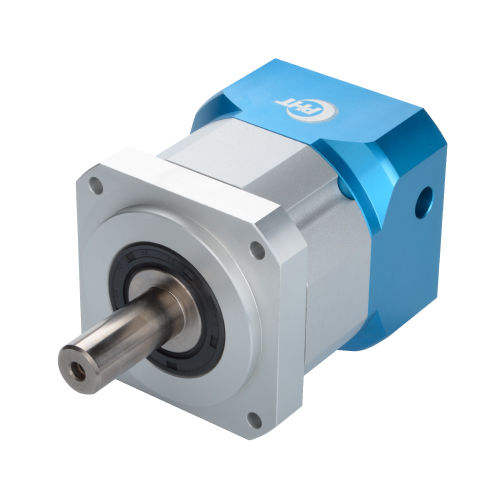

Planetary gear reducer DM150 helical gearcoaxialhollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Torque
- 500 - 1000 Nm
- Performance
- precision
- Applications
- for servo motors
- Other characteristics
- aluminum
- Rotational speed
3,000 rpm
(18,849.56 rad.min-1)- Backlash
Max.: 0.13 °
Min.: 0.08 °
- Gear ratio
Max.: 100 unit
Min.: 3 unit
Description
PHT Vertex Precision’s planetary gear reducers offer high torque and rigidity, employing a straight gear in place of a helical gear for more efficient operation. Its precise and low backlash is enabled by a pre-run procedure for meshing gears inside. The reducers also easily dispense heat, with an outside shell entirely (DH series) or partially made of aluminum (DH series).
Its general lead time is about 3 to 10 working days. Torsional stiffness is 48 Nm / Arcmin, while blacklash is less than or equal to 6 Arcmin (1 stage). Its rated output torque is 520 Nm, while the maximum output torque is Tn X 3 Nm.
Catalogs
PLANETARY GEARBOXES
47 Pages
Other PHT Vertex Precision Components Corporation products
Planetary Gearboxes
