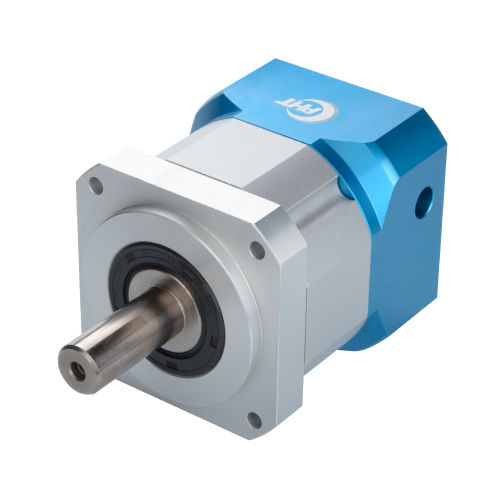

Planetary gear reducer DM180 helical gearcoaxialhollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Torque
- 500 - 1000 Nm, 1 - 2 kNm
- Performance
- precision
- Applications
- for servo motors
- Other characteristics
- aluminum
- Rotational speed
3,000 rpm
(18,849.56 rad.min-1)- Backlash
Max.: 7.45 °
Min.: 0.08 °
- Gear ratio
Max.: 100 unit
Min.: 3 unit
Description
The DS180 series is manufactured by PHT Vertex Precision Components Corporation, and is a planetary gear reducer with high torque and rigidity by using straight gear instead of helical gear. It has a high accuracy for meshing gears inside and making precise backlash, which has lead time for about 3 to 10 working days.
The unit has torsional stiffness of 115 N/arc-min, which has a backlash of 6 arc-min in 1 stage. It has a torque rating of 3 Nm to 1185 Nm, which has an outside shell that is made up of aluminium.
Catalogs
PLANETARY GEARBOXES
47 Pages
Other PHT Vertex Precision Components Corporation products
Planetary Gearboxes
