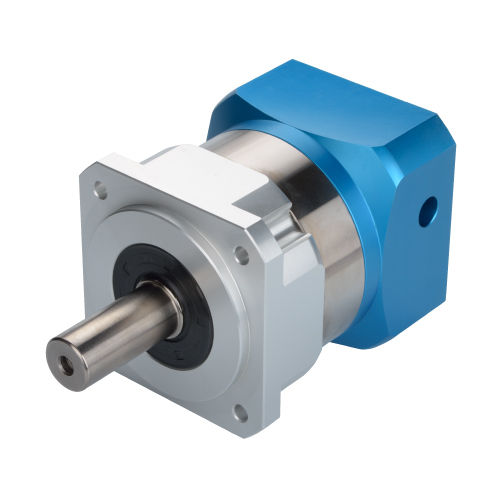

Planetary gear reducer DH090 helical gearcoaxialhollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Torque
- 100 - 200 Nm
- Performance
- precision
- Applications
- for servo motors
- Other characteristics
- aluminum
- Rotational speed
4,000 rpm
(25,132.74 rad.min-1)- Backlash
0.17 °, 0.2 °
- Gear ratio
Min.: 3 unit
Max.: 100 unit
Description
PHT Vertex Precision’s planetary gear reducers offer high torque and rigidity, employing a straight gear in place of a helical gear for more efficient operation. Its precise and low backlash is enabled by a pre-run procedure for meshing gears inside. The reducers also easily dispense heat, with an outside shell entirely (DH series) or partially made of aluminum (DH series).
Its general lead time is about 3 to 10 working days. Torsional stiffness is 11 nm / Arcmin, while blacklash is less than or equal to 10 Arcmin (1 stage). Its rated output torque is 168 Nm, while the maximum output torque is Tn X 3 Nm.
