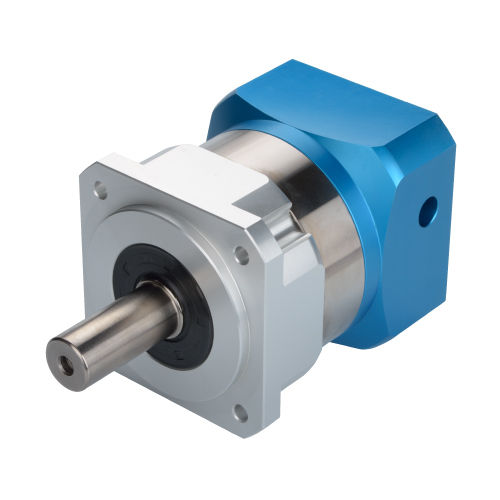

Planetary gear reducer DH120
helical gearcoaxialhollow-shaft

planetary gear reducer
planetary gear reducer
Add to favorites
Compare this product


Characteristics

Type
planetary, helical gear
Shaft orientation
coaxial
Shaft configuration
hollow-shaft
Torque
200 - 500 Nm
Performance
precision
Applications
for servo motors
Other characteristics
aluminum
Rotational speed

4,000 rpm
(25,132.74 rad.min-1)

Backlash

0.17 °, 0.2 °

Gear ratio

Min.: 3 unit

Max.: 100 unit

Description

The device features torsional stiffness of 27 Nm / Arcmin and a backlash that is less than or equal to 11 Arcmin (at 1 stage). Its rated output torque Tn is 285 Nm and the maximum possible output torque Tp is Tn X 3 Nm. It makes use of a straight gear rather than the traditional helical gear to obtain high rigidity, high torque and better efficiency. It also uses the procedure of pre-run for meshing gears inside and making precise backlash. The devices outer shell is made of aluminum. This allows for easy release of heat, making it suitable for many applications.
