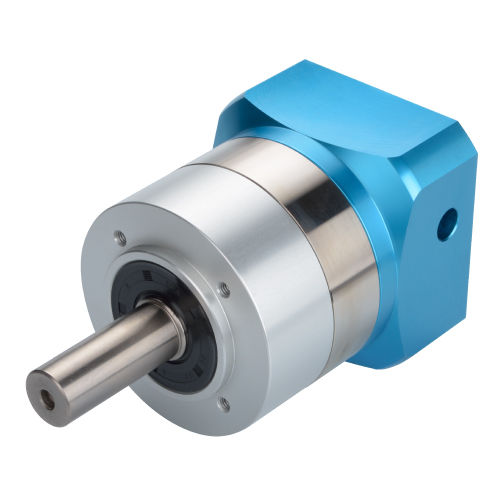

Planetary gear reducer DL090 helical gearcoaxialhollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Torque
- 100 - 200 Nm
- Performance
- precision
- Applications
- for servo motors
- Other characteristics
- aluminum
- Rotational speed
4,000 rpm
(25,132.74 rad.min-1)- Backlash
0.17 °, 0.2 °
- Gear ratio
Max.: 100 unit
Min.: 3 unit
Description
The DL090 series is manufactured by PHT Vertex Precision Components Corporation, and is a planetary gear reducer with high torque and rigidity by using straight gear instead of helical gear. It has a high accuracy for meshing gears inside and making precise backlash, which has lead time for about 3 to 10 working days.
The unit has torsional stiffness of 11 N/arc-min, which has a backlash of 10 arc-min in 1 stage. It has a torque rating of 3 Nm to 168 Nm, which has an outside shell that is made up of aluminium.
