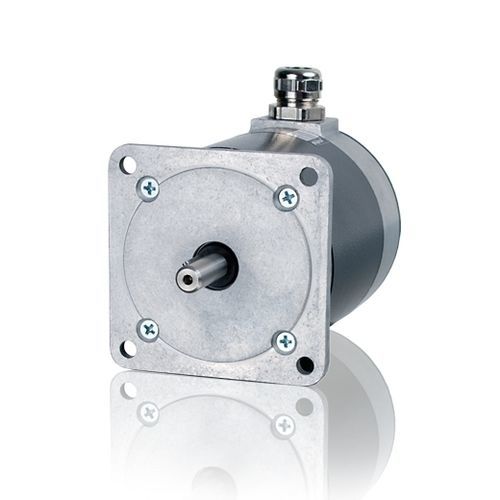

AC motor ZSH Serieshybrid stepper24 VIP54
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- hybrid stepper
- Voltage
- 24 V
- Protection class
- IP54, IP68
- Number of poles
- 2-pole
- Other characteristics
- high-torque, NEMA
- Intensity
Max.: 12.5 A
Min.: 1.4 A
- Torque
Max.: 17 Nm
(12.5386 ft.lb)Min.: 0.45 Nm
(0.3319 ft.lb)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)
Description
Convincing: performance that sets the standards
Like the ZSS, the ZSH stepper motors set powerful accents in every movement. They expand the ZSS motors with diameters of 57 to 107 mm.
Technical Details
• 2-phase hybrid stepper motors for unipolar or bipolar control mode
• Holding torques from 0.45 to 17 Nm
• Diameters ZSH: 57 to 107
• NEMA compatible
• Number of steps/rev.: 200, step angle: 1.8°
• Minimum protection mode: IP54, IP68 on request
• Permissible surface temperature: -30 °C to +80 °C
(short-time up to 100 °C)
Available Models:
• Sizes and windings: see table in the data sheet
• Free wire ends or terminal box
• Double shaft
• Gear
• Motor brake
• Encoder
