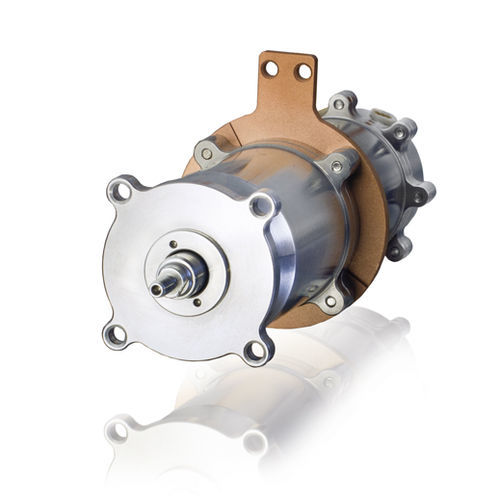

Two-phase stepper linear motor LA

24 V

Linear Actuator for Applications in Ultra-High-Vacuum and Cryogenic Environment Technical Details • 2-phase stepper motor, size 25 mm • Phase current 1.5 A in the medium • Motor voltage 24 VDC • Linear speed 1.5 s/mm • Linear stroke 13 mm • Axial force: 10 N (with gear 30 N) • Positioning accuracy <0.01 mm • Operating temperature – Cryo version: UHVC1: -196 to -50 °C UHVC2: down to -269 °C (on demand) – UHV version (UHVS): -40 to +200 °C • Dry lubricated suitable for applications in UHV vacuum up to 10-11 hPa, radiation-resistant up to 106 J/kg Features: • Rotatory encoder with switching cam • Linear limit switches for stroke limitation • Temperature evaluation with thermocouple type K Options: • with VGPL precision planetary gear
