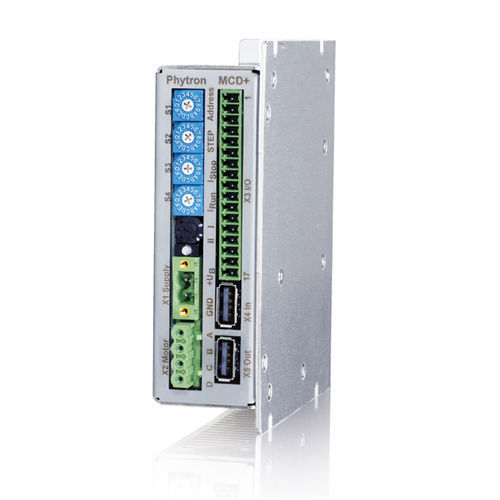

Compact Stepper Motor Power Stage
Technical Details
• Mini step and micro step power stage for bipolar control of 2-phase stepper motors
• Phase currents up to 9 APEAK / 24 to 70 VDC
• Parameterisation via setting switches or ServiceBus
• Setting switch mode: phase current setting in 15 stages,
step resolution up to 1/20 step
• ServiceBus mode: phase current setting in 100 mA increments,
step resolution up to 1/512 step
• Free Phytron PC software ServiceBus-Comm for Windows®
• Electrically isolated inputs and outputs
• Status LED
• Compact design – 127 x 37 x 110 mm only
• Wall mounting bracket for different mounting positions
• Removable DIN-rail clip
