DC motor controller MCC-2

steppercompact2-axis

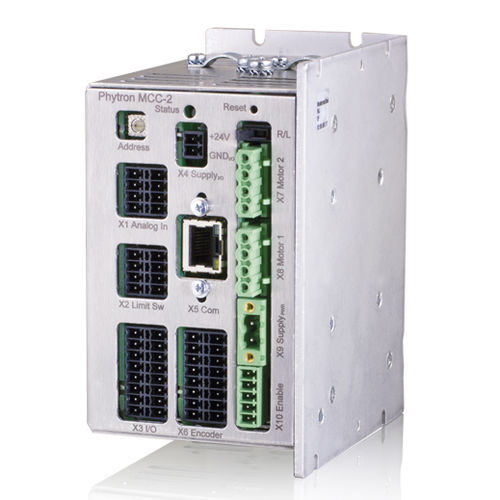

freely programmable, compact & versatile - remote or stand-alone The MCC-2, phytron ́s freely programmable dual axis stepper motor controller, is a compact stand-alone unit (CPU, Indexer and power stage) for 2-phase-stepper-motors providing up to 3.5 APEAK phase current. Controllers in the MCC series have many inputs and outputs (digital and analog) and encoder inputs for step position monitoring plus possibilities to connect limit switches all as standard. Due to the viariety of available host interfaces (Ethernet, Profibus, USB etc.), the MCC can be quickly and easily integrated into existing applications. Technical Details • Programmable 2-axes stepper motor controller for stand-alone operation • Bipolar control of 2-phase stepper motors • Phase currents up to 3.5 APEAK • Supply voltage 24 to 48 VDC • Step resolution up to 1/256 step • USB, RS 485, RS 232 or Ethernet interface • Programming in the well-tried MiniLog format and acc. to DIN 66025 • 2 analog inputs, e. g. for joystick • 8 digital inputs / 8 digital outputs, electrically isolated • Encoder evaluation • LabVIEW®-VI for MCC • Redundant designed hardware input for enabling the motors • Compact design, size 127 x 72 x 110 mm • Wall mounting bracket for different mounting positions • DIN rail mounting kit Available models • USB or RS 232 interface for PC connection • RS 485-4-wire interfaces for PC (RS 422) connection and bus operation • Ethernet interface for integraton into the firm's network • Attached USB converter for PC connection and RS 485 bus operation • Attached terminal adaptor for BT 5 AM operator terminal • DIN rail or wall mounting
