DC motor controller MCC-1

stepperprogrammablecompact

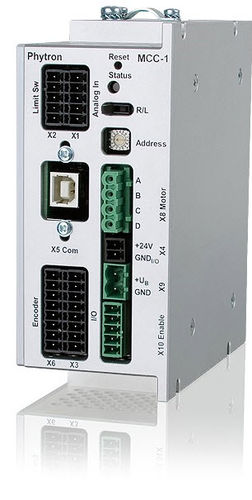

freely programmable, compact & versatile - remote or stand-alone The MCC-1, phytron‘s freely programmable dual axis stepper motor controller, is a compact stand-alone unit for 2 phase stepper motors providing up to 3.5 APEAK phase current. Controllers in the MCC series have many in-puts and outputs (digital and analogue) and encoder inputs for step position monitoring plus possibilities to connect limit switches all as standard. Due to the viariety of available host interfaces (USB, Ethernet etc.), the MCC can be quickly and easily integrated into existing applications. Technical Details • Freely programmable one-axis stepper motor controller for stand-alone operation • Bipolar control of 2-phase stepper motors • Phase currents up to 3.5 APEAK • Supply voltage 24 to 48 VDC • Step resolution up to 1/256 step • RS 485, RS 232 ,USB or Ethernet interface • programming in the well-tried MiniLog format and acc. to DIN 66025 • Analog input e. g. for joystick • 8 bidirectional digital inputs/outputs, electrically isolated • Redundant designed hardware input for enabling the motor • Encoder evaluation • Compact design, size 127 x 55 x 110 mm only • Wall mounting bracket for different mounting positions • DIN rail mounting kit Available models • USB or RS 232 interface for PC connection • RS 485-4-wire interfaces for PC (RS 422) connection and bus operation • Ethernet interface for integraton into the firm's network • Attached USB converter for PC connection and RS 485 for bus operation • Attached terminal adaptor for BT 5 AM operator terminal • DIN rail or wall mounting
