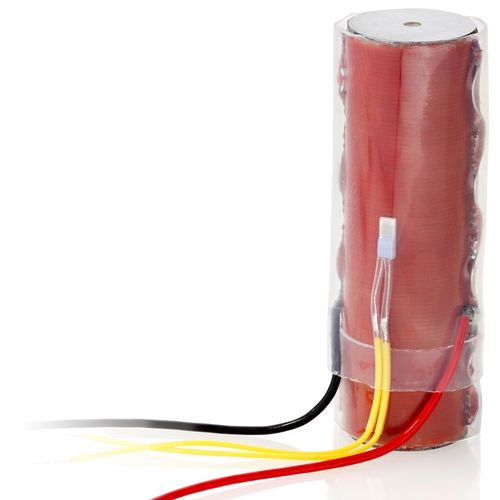

Linear piezoelectric actuator P-0 series

ceramic

For High-Dynamics Applications • Operating temperature up to 150 °C • High operating frequencies • High load capacity • Force generation up to 70 kN Stacked piezo linear actuator Operating voltage 0 to 1000 V. Long lifetime without derating. Large displacement, low electrical capacitance. Sub-nanometer resolution, µs response. Integrated temperature sensor to prevent damage from overheating. Extreme reliability: >109 cycles Available options • Bipolar control • SGS sensors for positional stability • PZT ceramic material • Operating voltage range, displacement, layer thickness • Load capacity, force generation • Geometric shapes: rectangular, inner hole • Mechanical interfaces: flat, metal, ceramic, glass, sapphire, etc. • Integrated piezoelectric detector layers • Operating temperature of up to 200 °C • UHV-compatible to 10-9 hPa • Non-magnetic versions • Extra-tight length tolerances Fields of application Industry and research. For active damping of oscillations, precision mechanics and machining, active structures (adaptive systems technology)
