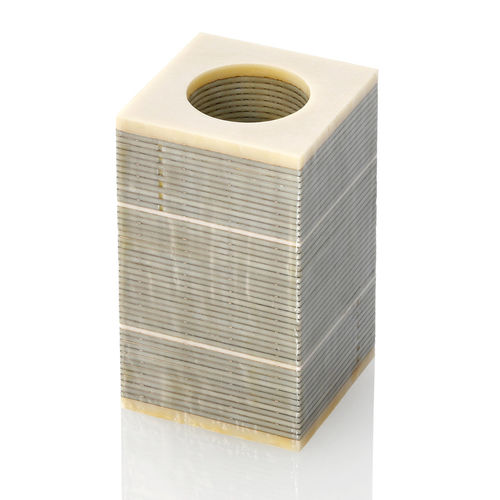

Shear piezoelectric actuator P-15 series
0 V...10 V10 V...50 V101 V...300 V

Shear piezoelectric actuator - P-15 series - PI Ceramic GmbH - 0 V...10 V / 10 V...50 V / 101 V...300 V
Shear piezoelectric actuator - P-15 series - PI Ceramic GmbH - 0 V...10 V / 10 V...50 V / 101 V...300 V
Add to favorites
Compare this product


Characteristics

Voltage
0 V...10 V, 10 V...50 V, 101 V...300 V, 51 V...100 V
Other characteristics
multi-axis, shear, ceramic
Stroke

3 µm, 5 µm, 10 µm
(0.394 in)

Force

Min.: 20 N

Max.: 200 N

Description

Compact Multi-Axis Actuators with Inner Hole • Single and multi-axis versions • Travel ranges to 10 × 10 × 10 µm • Extreme reliability: >109 cycles • Picometer resolution • Short lead times Piezo shear actuators with inner hole Operating voltage -250 to 250 V. Lateral displacement is based on the piezoelectric shear effect. Excellent dynamics with minimum electric power requirement. Variants without inner hole or for use in cryogenic and UHV environments to 10-9 hPa. Possible modifications • Piezo ceramic material • Nonmagnetic versions • Operating voltage range, displacement, layer thickness, cross-sectional dimension • Load capacity, force generation • Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc. • Extra-tight length tolerances Fields of application • Industry and research • Low temperature / vacuum versions to 10-9 hPa • Scanning applications • Microscopy • Precision mechanics • Switching applications
