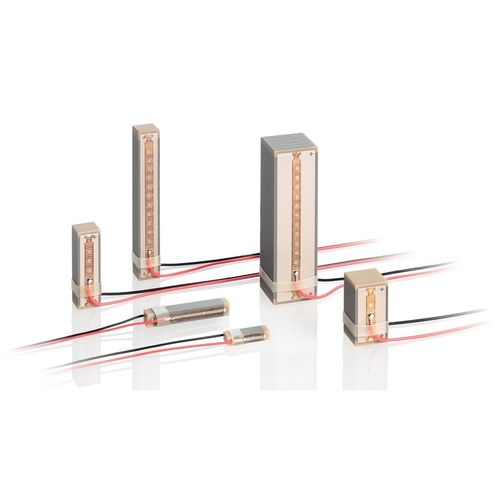

Linear piezoelectric actuator P-88 series

0 V...10 V10 V...50 V101 V...300 V

Ceramic-Insulated High-Power Actuators • Superior lifetime • High stiffness • Microsecond response • Subnanometer resolution • UHV-compatible to 10-9 hPa Patented PICMA® Stack multilayer piezo actuators with high reliability Operating voltage -20 to 120 V. Ceramic insulation, polymer free. Humidity resistance. Excellent temperature stability. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Ideal for dynamic operation. Flexible thanks to numerous designs. Encapsulated versions for operation in splash water or oil. Custom designs with modified specifications • For high operating temperature up to 200 °C • Special electrodes for currents of up to 20 A • Variable geometry: Inner hole, round, rectangular • Ceramic or metal tips in many versions • Applied SGS sensors for positional stability Fields of application Industry and research. Cryogenic environment with reduced displacement. For high-speed switching, precision positioning, active and adaptive systems.
