Piezo amplifier E-831 series
powercompactOEM

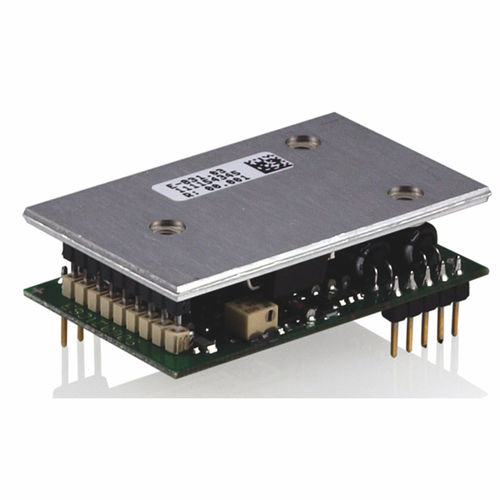

Piezo amplifier - E-831 series - PI Ceramic GmbH - power / compact / OEM
Piezo amplifier - E-831 series - PI Ceramic GmbH - power / compact / OEM
Piezo amplifier - E-831 series - PI Ceramic GmbH - power / compact / OEM - image - 2
Add to favorites
Compare this product


Characteristics

Type
power
Other characteristics
low-noise, piezo, compact, OEM
Voltage

Max.: 120 V

Min.: -30 V

Current

Max.: 250 mA

Min.: 50 mA

Frequency

Max.: 15,000 Hz

Min.: 3,500 Hz

Description

Low-Cost Module with Separate Power Adapter • Compact piezo power amplifier • Peak current up to 250 mA • Inexpensive • Low noise, high stability • Easy integration • Short-circuit proof, full overcurrent and overtemperature protection Single channel piezo amplifier module Compact OEM module. Various models for different dynamic requirements. Power supply using external power adapter, also customer's own Optional power adapter modules E-841 and E-842 power adapter modules with varied performance ranges. Suitable for supplying up to three E-831 piezo amplifiers. Custom power adapters on request Functions Low-noise power amplifier. Gain value 10. Output voltage range -30 to 130 V, depending on the power adapter used. Monitor output 1 : 100. Overtemperature protection. Solder pins for PCB mounting
